Reporting Services Tips for OLAP Cubes

Naturally I have an inclination to use Reporting Services on OLAP cubes. My feeling is that reports should by and large be run from OLAP cube where they can be dynamic and fast. SQL based reports are more ideally suited for "atomic data" reports (eg transaction lists) and some special reports requiring real time data.

There are a few funnies when you get into OLAP reports with SSRS. The SSRS wizard does a great job of starting the report and building the parameters you need. However, before long you will need to edit the MDX that the wizard creates, to do things like taylor the parameter queries for cascading filters. Here are a couple of tricks that I commonly use.

In SSRS 2008, when you edit any MDX query, the designer will automatically rebuild (in other words wash out any MDX changes you have made) input parameter queries. The simple work around for this frustrating behaviour is to remove the Dimension and Hierarchy values from the query's parameter list.

You might want to use the SSRS calendar control for easy date picking, which is used to filter an OLAP date dimension. This isn't handled automatically, but can be achieved with the following. Change the parameter property to be Date/Time datatype. That will ensure that SSRS uses the date picker. For most reports you will want to dynamically specify the default. This can be simply achieved by a single row OLAP query (for example the last day with data) or from today's date using the now() function. If you use the now() function you can strip off the time with =cdate(format(now(),"yyyy-MM-dd")). The trick now is to use the datetime parameter in your MDX query. What you need to do is construct a full member name using the known dimension-hierarchy names and contruct the member key using the date. The construction of the key will depend on what you have defined as the key of the date hierarchy. If the key is a date, then the fully qualified member name will look something like this. [Date].[Calendar].[TheDate].&[2009-06-26T00:00:00]. So to include the date parameter in your query you can include something like the following in your query strtomember("[Date].[Calendar].[TheDate].&["+format(now(),"yyyy-MM-dd")+"T00:00:00]") Just replace [Date] [Calendar] and [TheDate] with the dimension, hierarchy and level name from your dimension. The MDX query tool in SQL Enterprise Manager will help by providing a sample member. The date parameter might simply be used in the WHERE clause to filter the query or it might be part of a range specification etc. It's a member specification and as such could be used anywhere in your query.

Not so much of a tip, but more of an apology. The MDX query editor in SSRS is a very poor text editor. When I am editing an MDX query, I invariably cut and paste the query into and out of SQL Enterprise Manager Query tool.

Here is an easy way to get a report line number. =RunningValue(1, SUM, "Invoice_Data") The line number can also be used for alternate line shading.

Check the performance of all the MDX queries. If any of them are not running fast enough, see if there is anything you can do to speed them up. One classic way to improve performance and improve report usability is to filter out empty members.

Another classic way to improve performance is to change the use of any single select parameters from StrToSet() to StrToMember() and placed on the WHERE clause.

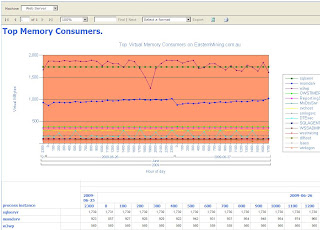

Just like SQL reports. Or perhaps more so, since OLAP reports are more likely to be run dynamically, link your reports together so that users can easily navigate down and across reports. Essentially, making it easier for users to drill through to focus the salient data. With SSRS reports on OLAP this can be achieved in such a way that users do not need to know anything about databases or even that a cube is behind the report. They simply click on headings or numbers to drill into and across the data that interests them. For example, click on the "Top Memory Consumers" picture above for an OLAP report. The report is dynamic and close to real time. Notice how you can click on any of the processes and get an analysis of that process. Likewise, you can click on any of the counters in that report for a breakdown of the processes using that resource. A good set of dynamic SSRS reports will appear more like an application to end users than a traditional list of static reports.

One last tip is to verify that all the queries in your report definition are actually used. Sometimes SSRS will create new queries for you when you edit parameters. Or you might modify a report and remove a parameter. Do remember to take out the unused queries. All queries appear to fire even if they aren't used.

For examples of real time OLAP reports see http://RichardLees.com.au/Sites/Demonstrations

1 comment:

Integratek said...

Hi, to anyone who can help me I would really appreciate it. I have spent several days trying to make a

Reporting Services report using Visual Studio 2005 and a cube from SQL Server 2005 Analysis Services.

The report needs to use a Date parameter. The cube stores the date field in a string format. After

creating the parameter for the report a list of values is presented for the user to select from. I do

not wish to use an entire list of available values for the parameter, I need to be able to use a

calendar date picker. I am using the Adventure Works sample database.

My MDX query which I have edited manually looks like this:

SELECT NON EMPTY { [Measures].[Internet Order Count] } ON COLUMNS FROM ( SELECT (

STRTOMEMBER(@DateDate) ) ON COLUMNS FROM [Adventure Works]) CELL PROPERTIES VALUE, BACK_COLOR,

FORE_COLOR, FORMATTED_VALUE, FORMAT_STRING, FONT_NAME, FONT_SIZE, FONT_FLAGS

I know that I must go to Layout > Report Parameters > DateDate parameter and change the Data type from

String to DateTime, deselect Multi-value, put Available values as Non-queried and Default values to

Null.

Then in the Dataset click the ... button and go to the Parameters tab. There I must replace the Value

for the DateDate parameter with an Expression. I think this is where my problem is. I have tried

several expressions and conversion formulas but in the results the field always appears blank.

My DateDate parameter Value expression is:
="[Date].[Date].&[" & Format(CDate(Parameters!DateDate.Value),"MM/dd/yyyy") & "]"

I have encased my MDX query in an expression with ="SELECT etc etc" but have not gotten this to work.

My Text for the query is:
="SELECT NON EMPTY { [Measures].[Internet Order Count] } ON COLUMNS FROM ( SELECT (

STRTOMEMBER(@DateDate) ) ON COLUMNS FROM [Adventure Works]) CELL PROPERTIES VALUE, BACK_COLOR,

FORE_COLOR, FORMATTED_VALUE, FORMAT_STRING, FONT_NAME, FONT_SIZE, FONT_FLAGS"

Please help me, I am going crazy with this! Thank you so much in advance.
